IP65 Protection Fixed Drone Gps Spoofing Device 4 Bands / 6 Bands / 10 Bands

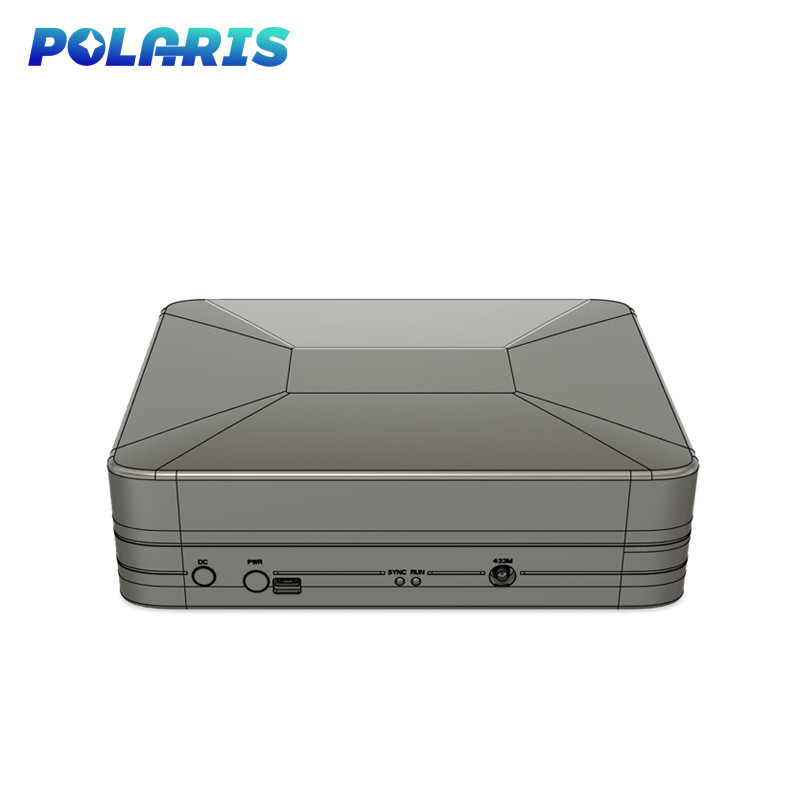

4 bands/6 bands/10 bands  Fixed Drone GPS Spoofing Device

Introduction

The Fixed 4bands/6 bands/10 bands  Fixed Drone GPS Spoofing Device can intervene in the navigation system of drones in a fixed area, actively defend drones and clusters, and make them unable to hover and fly based on navigation and positioning information, so as to force them to return or make an emergency landing. In an unattended state, active security defense of invading drones and clusters is completed.

The device mainly identifies drones with GPS L1 and GLONASS L1 navigation signals and actively intervenes in them. The operation interface of the remote controller of the drone that initially receives the intervention shows that the GPS L1 and GLONASS L1 signals are lost, and the drone returns because it cannot navigate and locate.

Basic

Detail Parameters

1. Effective Range: 1500m-3000m (with adjustable range control within 1000m as needed).
2. Signal Transmission Power: ≤10mW (BIRP, single-channel, at maximum effective range).
3. Operating Bands: GPS L1, GLONASS L1.
4. Operating Frequencies: 1575.42MHz ± 1.023MHz, 1602.0MHz + N * 562.5kHz ± 511kHz (N ranges from -7 to 6).
5. Frequency Tolerance: ≤ ±2×10.
6. Signal Bandwidth: Does not exceed the specified frequency range.
7. Spurious Emissions: ≤ -36dBm (30MHz-1000MHz, RBW 100kHz); ≤ -30dBm (1000MHz-18GHz, RBW 1MHz).
8. Effective Defense Angle: 360° full coverage with controllable protection area.
9. Operating Temperature: -50°C to +80°C (adjustable based on local conditions).
10. Protection Level: IP65.
11. Electromagnetic Radiation: <0.4W/㎡, compliant with national electromagnetic environment standards: GB8702-2014.
12. Lightning Protection Certification: Certified by the National IoT Product and Application System Quality Supervision and Inspection Center.
13. Power Supply: 220V AC.
14. Power Consumption: ≤50W.
15. Main Unit Dimensions: Length ≤50cm, Width ≤34cm, Height ≤20cm.
16. Main Unit Weight: ≤15kg.
