Name: 4G 5G Terminals Cell Phone Detector Lightweight Design Collect IMSI Information And Locate
Brand: Shenzhen Polaris Security Technology Co., Ltd.
SKU: Hobit D3s
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Frequency Band: 2.4GHz And 5.8GHz

Appearance: Aluminum Alloy

Alarm : Voice+Vibration

Size: 81mm*78mm*262mm

Highlight:

Cell Phone Detector Lightweight Design

4G 5G Cell Phone Detector

Basic Infomation

Place of Origin: Shenzhen,China

Brand Name: Polaris

Certification: CE,ISO9002

Model Number: Hobit D3s

Payment & Shipping Terms

Packaging Details: Durable case or box

Delivery Time: In 7 -14 works day

Payment Terms: T/T, Paypal , Etc.

Supply Ability: 50 Pcs/month

Gallery

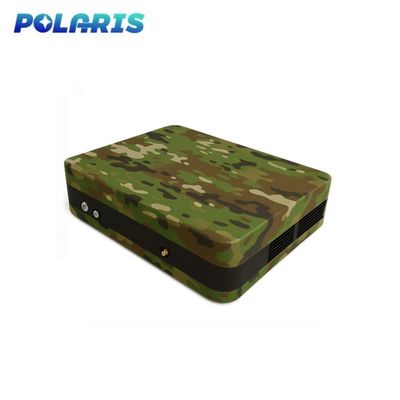

4G 5G Terminals Cell Phone Detector Lightweight Design Collect IMSI Information And Locate

Product Description

4G And 5G Terminals Cell Phone Detector Can Collect IMSI Information And Locate

Introduction

The 2km Lightweight Design Cell Phone Detection Drone Detector With Voice and Vibration Alarm is a compact and portable UAV detection device designed for ease of use. With its lightweight build and advanced detection capabilities, it accurately identifies UAV signals in various environments. Ideal for professional and personal applications, it ensures reliable performance with user-friendly operation.

Basic

Name	4G+5G micro-positioning Pro
Model	LTE8B2C-NR6B2C-5W
Applicable network	Mobile, Unicom, Telecom, Radio and Television, 4G, 5G network (SA, NSA)
Working mode	Active direct purchase
Number of carriers	LTE dual carrier + NR dual carrier
Supported frequency bands	TE-Cell 1: B1B5B8B39B40B41;	LTE-Cell 2:B3B34B40B41;

	N R-Cell 1:N1N3N41N78N79;	NR-Cell 2:N28N41N78N79;

Frequency hopping time	Switching time <1S, frequency hopping cycle can be configured
Frequency sweeping and frequency matching	Supports power-on frequency scanning and automatic frequency matching, supports manual addition and deletion of frequency points
Working bandwidth	4G: 5M, 5G: self-adaptive 10M, 20M, 40M
Antenna	Built-in directional antenna, multiple arrays, gain 8dBi
Maximum transmit power (antenna port)	N41/N78 5W/carrier N28/79, 1W/carrier, other frequency bands 2~5W/carrier,
Transmit power (antenna port)	3 levels adjustable, each level differs by 3dB
Receive sensitivity	-102dBm
Synchronization method	GPS, air interface synchronization
Positioning distance	1~500 meters (depending on the current network strength of the target and whether there are any obstructions)

Interface Definition

Serial number	Name	Silkscreen	Remarks/Instructions
1	Power supply interface	DC20V	Main view: left GND, right DC-20V
2	Power switch	PWR-SW	Long press “on”, long press “off”
3	Wired communication port	LAN	(USB-Type-C), do not use it as a power supply port, after the device is powered off and restarted, you need to unplug the data cable again to connect normally;
4	Synchronization indicator	SYNC	After the synchronization clock is locked, the light is always on
5	Running Indicator	RUN	After the program is normal, the light flashes
6	433M digital transmission	433M	Need to combine with the digital soldier, digital transmission with
