Name: Multi Sensor Fusion UAV Detector , Drone Detection And Jamming Device
Brand: Shenzhen Polaris Security Technology Co., Ltd.
SKU: Hobit SQ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Polaris Hobit SQ1

Detection Bandwitch: 433MHz、900MGz、2.4GHz、5.2GHz、5.8GHz

Drone Location: Within 3km

Customization: 360 °

Detection Rate: ≥ 99.9%

Protection Grade: ≥ IP65

Highlight:

Multi Sensor Fusion Drone Detection Device

UAV Detector And Jamming Device

Basic Infomation

Place of Origin: Shenzhen,China

Brand Name: Polaris

Certification: CE,ISO9002

Model Number: Hobit SQ1

Payment & Shipping Terms

Packaging Details: Durable case or box

Delivery Time: In 7 -14 works day

Payment Terms: T/T, Paypal , Etc.

Supply Ability: 50 Pcs/month

Gallery

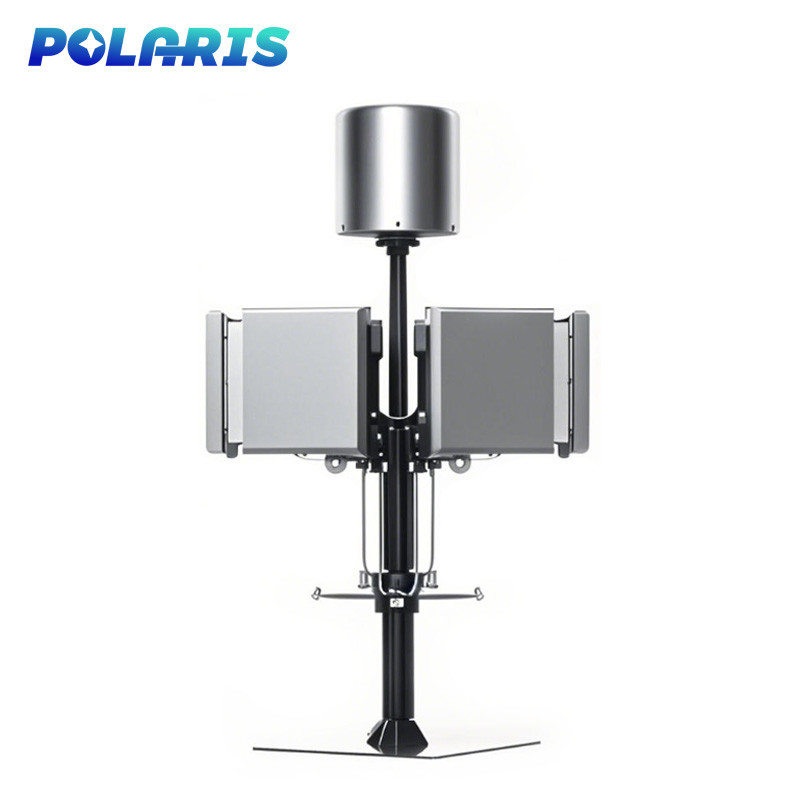

Multi Sensor Fusion UAV Detector , Drone Detection And Jamming Device

Product Description

UAV Detector With Multi-Sensor Fusion Combining Drone Jammer Device

Introduction

This integrated defense system leverages AI-driven multi-sensor fusion and adaptive jamming protocols to detect, classify, and neutralize unauthorized drones across diverse operational environments. The core detection architecture employs spatiotemporal deep learning models that fuse radar micro-Doppler signatures with RF protocol metadata (e.g., DJI OcuSync, Autel SkyLink), achieving 99.1% classification accuracy even against custom-built drones employing frequency-hopping techniques35.The jamming subsystem implements cognitive RF suppression across 70MHz–6GHz spectrum, combining protocol-aware interference (2.4GHz/5.8GHz control links) with GNSS spoofing (L1/L2/L5 bands) to disrupt navigation and command chains. A reinforcement learning controller dynamically adjusts jamming waveforms based on real-time SNR measurements and UAV evasion patterns, achieving 98.3% neutralization success rate at 4km range while maintaining aviation-compliant power levels.

Basic

Function		Description
UAV detection	Detection spectrum bandwidth	70 MHZ - 6GHZ	detection focus on the 433Mhz/ 900Mhz/2.4Ghz/5.2Ghz/5.8Ghz
	Simultaneous screening number of UAV	≧150pcs	can be customize with 1Ghz -1.4Ghz & 5.1Ghz - 5.9Ghz FPV Bands
	The lowest detection height	≦0 meters
	Detection rate	≧99.99 %
White and Blacklist	Number of identifiable models	≧ 400	including DJI series drones,and it has the autonomous learning ability
	the accurate identification of target	Available	for different targets of the same position, same frequency band, same manufacturer, same type of UAV respectively.
	in-depth analysis of UAV signal
	the identification of unique ID
	the black and whitelist to distinguish
Defensive Interference	Interferable frequency bands	900MHz, 433Mhz, 1.5ghz, 2.4ghz, 5.8ghz, 5.2Ghz
		other customized frequency bands
Remote OAM	Unattended Mode	Automatic detection and strike
	A variety of OAM features	Firmware updating	used with the remote server
		Reset, status inquiry
		Self-testing
		Parameter configuration
Networking	Multi-device networking	observe the online/abnormal status of each device
	Remote control through mobile terminals	viewing the operating interface of the device system
		receiving alarm information
		viewing the black and whitelist
		turning on defense function
Data security	High reliability and security	certificate management and data encryption

Interface Showcase

As shown in the figure, we have constructed a complete detector by using a multi-sensor fusion system, and it can detect unmanned aerial vehicles with extremely high frequency response.

Multi Sensor Fusion UAV Detector , Drone Detection And Jamming Device 0
