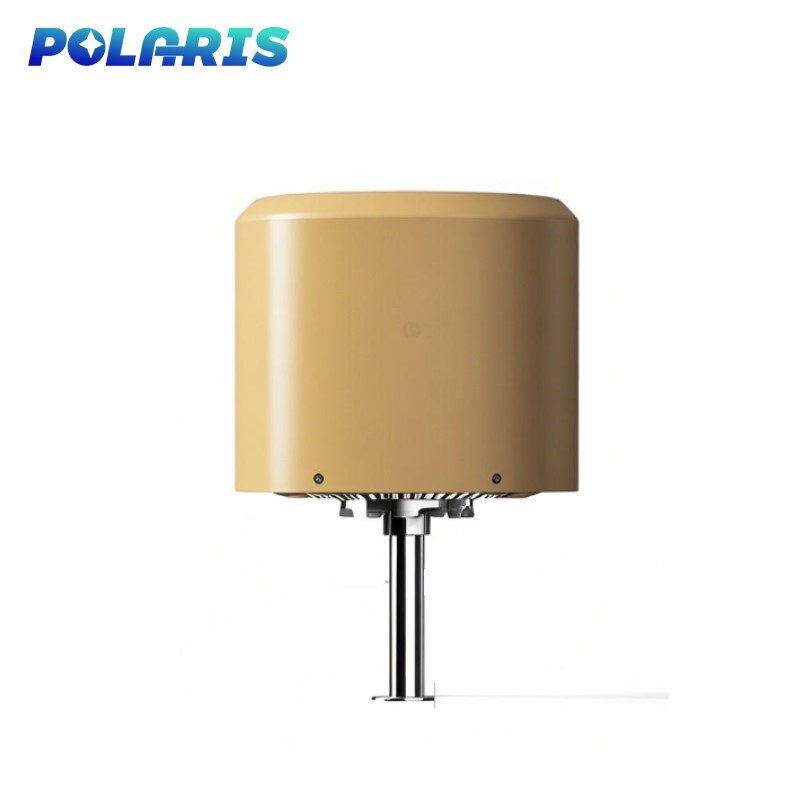

Full Band UAV Detection System FPV Detector For Trajectory Tracking

Adoption Of Drone Monitoring Technology With Its Own Full-band Module And Support For Trajectory Tracking

Introduction

This advanced UAV detection system leverages frequency spectrum monitoring to identify drone signals across 70MHz–6GHz bands, utilizing fast Fourier transform (FFT) and  statistical fingerprint analysis (SFA) to distinguish UAV control signals from background noise with minimal false alarms. By employing spectrum accumulation (SA)​​ techniques, it dynamically records signal parameters (frequency, power, timestamp) into a 1TB database, enabling post-event forensic analysis and regulatory compliance.The system integrates TDOA-AOA hybrid localization for precise tracking (≤40m accuracy) and supports multi-drone detection in cluttered environments. Real-time alerts are triggered within 3 seconds of unauthorized UAV detection, while whitelist management prevents interference with authorized devices. For extended-range scenarios, data logging combines cellular network transmission and UAV mesh networking to ensure seamless data relay to ground stations, even in remote areas. Hardware robustness  and adaptive machine learning algorithms further enhance reliability in critical infrastructures like airports.

Parameters

Interface Showcase

As shown in the figure, it is clearly visible that all the frequency information and specific models of the drones within the detection range are displayed.
