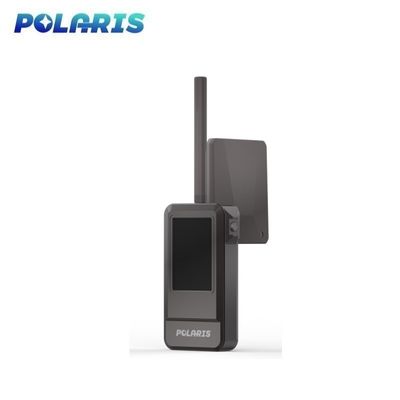

​​Mobile RF Spectrum Monitoring System For UAV Identification And Localization Dual Channel

​​Mobile RF Spectrum Monitoring System For UAV Identification And Localization Dual - Channel 2.4-5.8GHz

Introduction

This advanced portable detection system provides real-time monitoring and precise localization of unauthorized UAV activities across both 2.4GHz and 5.8GHz frequency bands. Featuring dual-channel RF spectrum analysis and intelligent signal processing, the system automatically identifies and classifies common commercial drone models (including DJI, Autel, and other major brands) through their unique communication signatures.

• Key capabilities include:
• 360° Direction Finding​​ - Pinpoints drone operator locations with ±5° bearing accuracy
• ​​Live Spectrum Visualization​​ - Displays real-time RF activity with signal strength mapping
• ​​Automatic Threat Classification​​ - Distinguishes between drones, WiFi networks, and other RF sources
• Compact Field Deployment​​ - All-in-one ruggedized case with <5 minute setup time

Ideal for mobile security teams and rapid response units, the system provides critical situational awareness for VIP protection, event security, and critical infrastructure monitoring. The dual-band architecture ensures reliable detection against frequency-hopping drones while maintaining a non-jamming, passive monitoring approach compliant with RF regulations.

Optional GNSS spoofing module available for active countermeasure capabilities.

Basic

Technical Specifications:

• Detection Range: 1.5 km (open area) / 1 km (urban)
• Display: 3.5-inch capacitive touchscreen (720×1280 resolution)
• Frequency Coverage:
  • FPV: 1.2–1.3GHz, 2.4–2.5GHz, 5.6–5.8GHz
  • UAV Control: 900MHz, 1.8GHz, 2.4GHz
  • Navigation: GPS L1 (1.575GHz), GLONASS G1 (1.602GHz)
• Power: 8000mAh battery (6-hour runtime) / DC 12V input
• Direction Finding: Multi-antenna TDOA with ±10° error

Applications

• Military & Border Security: Detect FPV surveillance drones in conflict zones.
• Critical Infrastructure: Protect power plants, airports, and government facilities.
• Event Security: Monitor no-fly zones during concerts, summits, or sports events.

Advantages

• Convenience: compact and easy to carry, light weight, customized logo (e.g., Mavic 3, Skydio 2).
• User-Centric: Intuitive UI reduces training time for operators nd can be used straight out of the box.
• Reliable: 24/7 operation with minimal false alarms (AI-powered signal filtering), Military-grade housing material for use in inclement weather.

Operations Guide

Press this button to enter the direction detection interface, including the detection of 360 degrees specific direction and the corresponding intensity of the direction, through comprehensive algorithm processing can get the strongest direction position.
