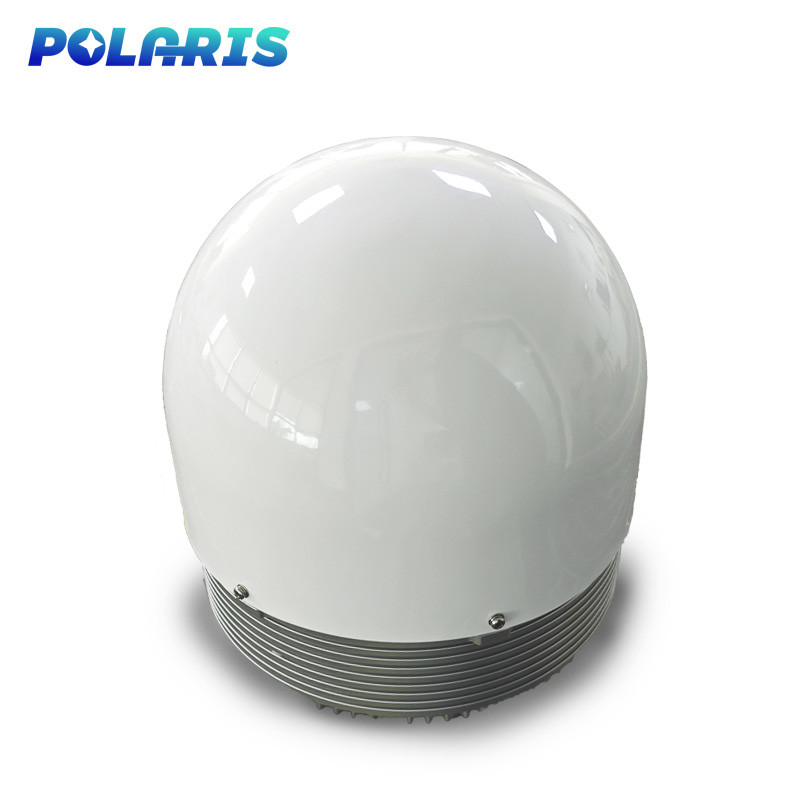

​​Full Band RF Drone Detection And Jamming System For UAV Countermeasures

Full-Band RF Detection And Jamming System For UAV Countermeasures

Introduction

This advanced anti-drone solution provides complete spectrum coverage for detecting and neutralizing unauthorized UAV threats across all commercial and custom frequency bands. The system continuously scans from 70MHz to 6GHz, automatically identifying and classifying drone signals through advanced RF fingerprinting technology before executing precision jamming protocols.

Parameters

Specs

• Detection Range: Up to 10 km in interference-free environments, varies with antenna type.
• Detection Spectrum Bandwidth: 70 MHz - 6 GHz, focusing on 433 MHz, 900 MHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz. Customizable for 1.0 GHz - 1.4 GHz and 5.1 GHz – 5.9 GHz FPV bands.
• Drone Location: Real-time drone and controller tracking, capturing DJI drone home points within 3 km
• Identification Range: Supports LightBridge, Ocusync, WiFi variants, Zigbee, Bluetooth, and custom protocols.
• Flight Trajectory Tracking: Monitors and records UAV flight paths.
• Accurate Recognition: Identifies UAV models and electronic fingerprints ID for 400 or more drone models.
• Detection Angle: 360-degree full coverage.
• Simultaneous UAV Detection: 150 or more drones.
• Lowest Detection Height: 0 meters or below.
• Detection Rate: 99.9 percent or higher.
• Broadband Jamming: Covers 433 MHz, 800 MHz, 900 MHz, 1.5 GHz, 2.4 GHz, 5.1-5.2 GHz, and 5.8 GHz. Customizable with 8 to 10 frequency bands, such as 433 MHz, 800-900 MHz, 1.2 GHz, 1.4 GHz, and 1.5 GHz.
• Interception Range: Effective at 2 km against UAVs in straight-line dives and turns.
• Takeover Function: Supports Parrot AR Drone takeover
