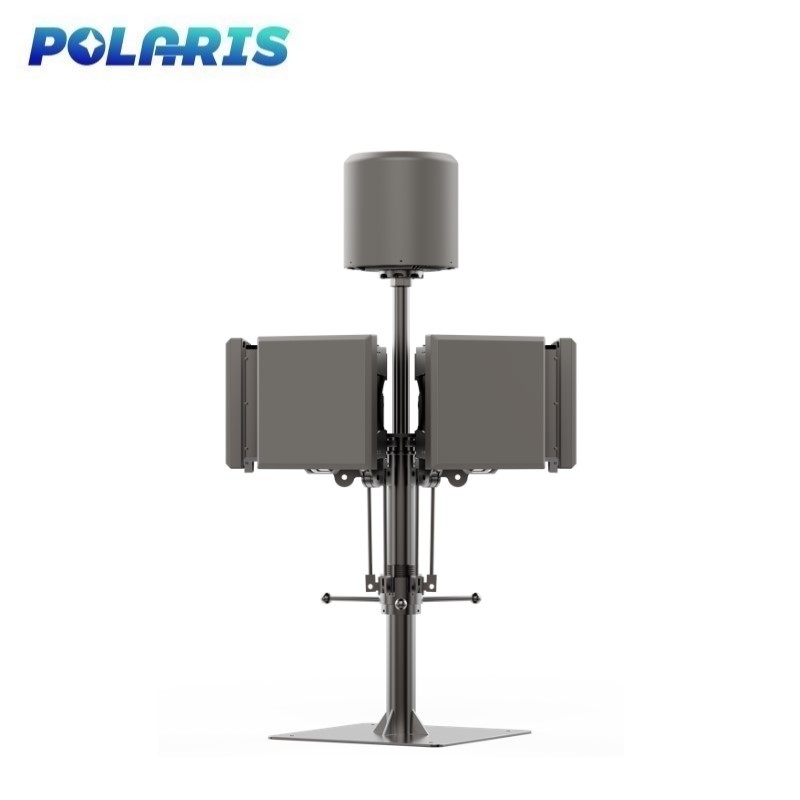

Drone Detector With 10km Range Direction Finding Capability And 3km Six Sector Directional Jamming
Introduction
This advanced drone detector is designed for comprehensive anti - drone operations. It features a remarkable 10 km range for precise direction finding, allowing operators to quickly locate incoming drones. Equipped with a 3km six-sector directional jamming system, it can effectively disrupt the communication and control signals of drones within its jamming range. Whether used in security - sensitive areas such as airports, military bases, or important events, it provides reliable protection against unauthorized drone intrusions. The six - sector jamming equipment design ensures a wide - angle coverage, maximizing the chances of neutralizing potential threats.
1, Long - range Direction Finding: Boasts a 10 km range for precise direction finding, enabling rapid detection of incoming drones from afar.
2, Powerful Jamming Capability: Comes with a 3km six - sector directional jamming system to effectively disrupt drone communication and control signals within its range.
3, Wide - angle Protection: The six - sector jamming equipment offers wide - angle coverage, providing reliable protection in sensitive areas against unauthorized drone incursions.
Basic
Function | Descriptions |
UAV detection Bands | 433Mhz, 868Mhz, 915Mhz, 2.4Ghz, 5.2Ghz, 5.8Ghz |
Fpv detection | Support FPV Detection: 300mhz-6.2ghz FPV Drones |
Detection Rate | Detection rate: ≧99.99 %s |
Drones Location | 1)For UAVs with Remote ID |
2)DJI Drone ID | |
White and Blacklist | accurate identification of target, in-depth analysis of Drones signal, the identification of Finger ID, and the black and whitelist to distinguish. |
Jammer | The System has interference & jammer capabilities of 6 sector on 433Mhz, 868Mhz, 915Mhz, 2.4Ghz, 5.2Ghz, 5.8Ghz bands and other customized frequency bands, and cover most of the UAV communication available in market. |
Auto Work | Once the fully self - movable defense is activated, the system can switch to unattended mode. In this mode, it is capable of autonomous detection and striking. |
OAM | When connected to the remote server, a wide range of Orbital Angular Momentum (OAM) - enabled features become accessible. These features include firmware updates, system resets, status inquiries, self - tests, parameter configurations, and other functions. |
Networking | The system has the ability to connect multiple devices via the server. It allows users to monitor whether each device is online or experiencing abnormalities. Through mobile terminals such as mobile phones and iPads, users can remotely control these devices. This remote control functionality encompasses various operations, such as accessing the system's operating interface, receiving alarm notifications, checking the blacklist and whitelist, and enabling specific functions. In essence, it provides a comprehensive and convenient means of managing and interacting with multiple devices from a distance. |
Data security | Use certificate management and data encryption between the equipment and server to ensure data reliability and security. |
