Advanced Portable Broadband UAV Detection Equipment with Real-Time Tracking Multi-Band Sensing Capabilities for Security and Event Surveillance

1
MOQ
2199-3599 USD
Price
Advanced Portable Broadband UAV Detection Equipment with Real-Time Tracking Multi-Band Sensing Capabilities for Security and Event Surveillance
Features Gallery Product Description Request A Quote
Features
Specifications
Detection Bands: 300MHz-6200MHz
Detection Distance: ≥1km
Direction Finding Accuracy: ≤5°
Simultaneously Detection: 10 Pcs
Working Time: 6 Hours
Screen Size: 3.5 Inch
Highlight:

ID Drone Decoding Drone Detector

,

Mobile Drone Detector 3km Range

,

Real Time Tracking Drone Detector

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Polaris
Certification: CE,ISO9002
Model Number: Hobit RS1
Payment & Shipping Terms
Packaging Details: Durable case or box
Delivery Time: In 7 -14 works day
Payment Terms: T/T,Paypal,Etc.
Supply Ability: 50 Pcs/month
Product Description

Advanced Portable Broadband UAV Detection Equipment with Real-Time Tracking Multi-Band Sensing Capabilities for Security and Event Surveillance


Introduction


The portable broadband drone detection device adopts a low-power design and highly integrated design, capable of detecting mainstream DJI, Daotong and other rotary wing drones using OFDM high-definition image transmission, as well as various DIY crossings using analog image transmission signals.  The device adopts dual antennas and multi-channel simultaneous scanning, which has the characteristics of fast detection speed, high detection sensitivity, long detection distance, low false alarm rate, strong scalability, and easy use.


Parameters


Function

Description

Receiving frequency band

300MHz-6200MHz

Identify type

OFDM high-definition image transmission signal, time traveling machine FM analog image transmission

Detecting distance

≥1km

Detection sensitivity

Better than -96dBm

Detecting alarm methods

Headphones, sound and light

Log recording

Support no less than 500 alarm records

Upgrade and data export interface

type-c

power supply

Detachable lithium battery (Type-C charging)

Battery life

≥ 6 hours (single battery)

structure size

≤ 135mm × 60mm × 35mm (host without antenna)

Working weight

≤ 500g (including single battery)

Startup method

Knob button, rotate to start

Control method

Key operation, supporting sound adjustment, screen backlight on, and drone detection information viewing function

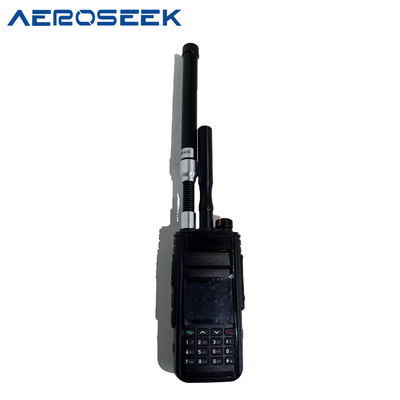

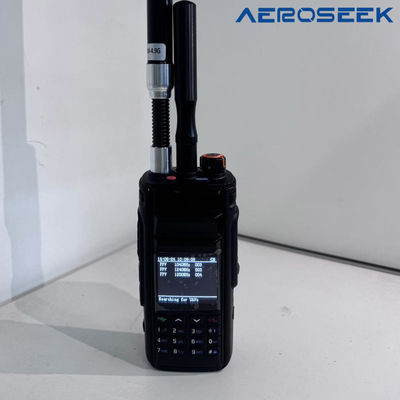

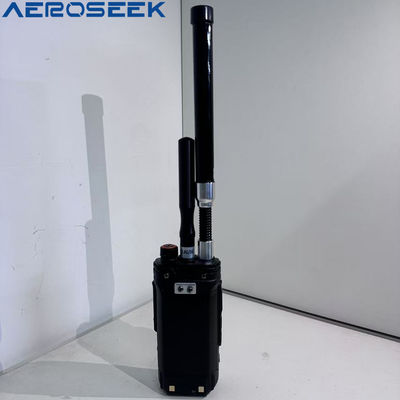

Detailed Showcase

Advanced Portable Broadband UAV Detection Equipment with Real-Time Tracking Multi-Band Sensing Capabilities for Security and Event Surveillance 0

Main functional features

Passive Detection of Drones: Able to identify rotary wing drones such as DJI and Daotong that use OFDM high-definition image transmission; Can detect various types of time traveling machines using analog image transmission within 300MHz-6200MHz.

Sound and light alarm: headphone sound alarm, external sound and light alarm.

Log recording: It has alarm log recording and can export alarm logs through USB interface.

Headphone function: capable of obtaining alarm sound through headphones.

Firmware upgrade function: Upgrade firmware through the Type-C interface.

Multi language switching: supports English and Russian.

Work status display: time, battery level, equipment status

Working modes: default mode, key frequency band scanning mode (later supported), user-defined feature library scanning mode (later supported).

Custom detection: Users can modify, delete, or add detection drone feature libraries through the type-c interface.


Troubleshooting Guide

Problem

Resolvent

No power supply, unable to turn on

The battery may not be installed properly, please remove the battery and reinstall it

The battery may be depleted, please replace the battery or charge it before use

No drone detected

The drone is not within the detection range of the device

The drone is not within the detection frequency range of the device

Lack of drone library, activate scanning function for detection

The standby time is too short

Regularly maintain the battery to prevent virtual charging

Confirm to turn off the lighting and vibration functions

Regularly replace the battery to prevent its capacity from decreasing over time

The battery life has expired (approximately 300 cycles of charging and discharging), please replace the battery

  • If the above methods still fail to solve your problem, or if you encounter some other malfunctions, please contact your local dealer for more technical support.
