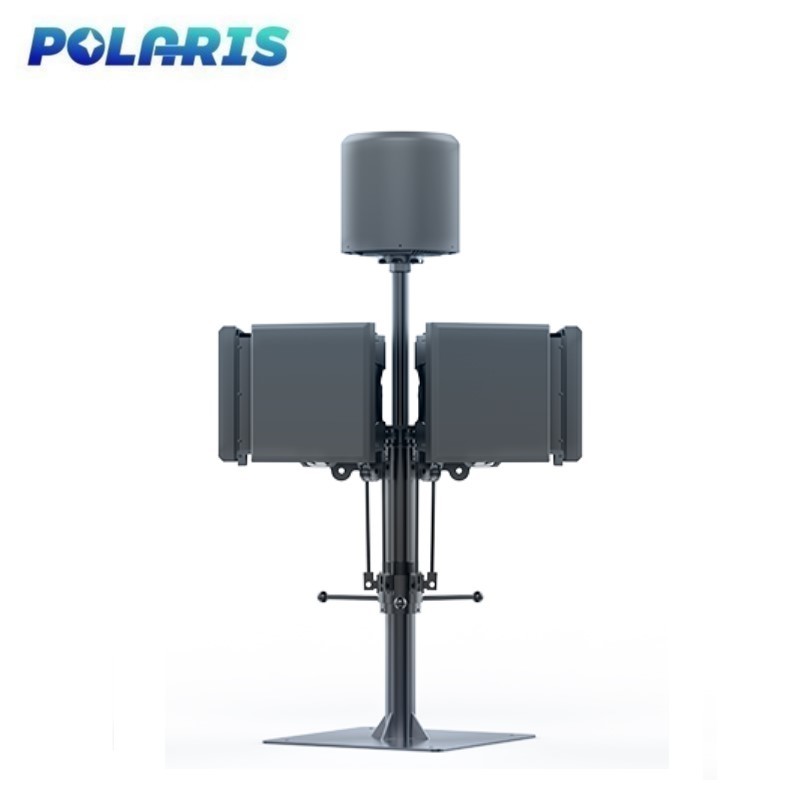

10km Aeroscope Radio Frequency With Aeroscope Function And Fixed Drone Jammer
Introduction
This innovative anti-drone system integrates 10km long-range Aeroscope radio frequency (RF) monitoring and 3km fixed jamming capabilities, designed for critical infrastructure protection, including airports, military bases, government facilities, and large-scale events. By combining high-precision RF analysis and directional jamming technology, the system provides real-time detection, tracking, and neutralization of unauthorized drones, ensuring 24/7, full-spectrum airspace security.
Basic
|
Function
|
Descriptions
|
|
Frequency bandwidth
|
70 MHZ - 6GHZ, focus on the 433Mhz,900Mhz,2.4Ghz,5.2Ghz,5.8Ghz；
|
|
FPV Drone Bands
|
1.0Ghz -1.4Ghz &5.1Ghz – 5.9Ghz FPV Bands
|
|
System
|
Web-based GUI with map overlay
API for third-party integration (e.g., radar, CCTV)
|
|
Tracking Capabilities
|
Real-time position, altitude, and velocity data
|
|
DroneID(aeroscope)
|
For UAVs with Remote ID (China GB42590-2023, US ASTM F3411-22a, EU ASD-STAN PrEN4709-002) and Drone ID (such as DJI Mavic2, Mavic3, air3s, Matrice4, etc., some require network decryption), it can parse detailed information such as drone location and pilot location.
|
|
Drone identify
|
More 440 models, Both RC and drones
|
|
Direction Finding
|
Yes
|
|
Detection range
|
Up to 10km base on the environment
|
|
Ingress protection
|
IP66
|
|
Weight
|
8.6kg
|
Usage Scenarios of the UAV Detection System
1. 10km RF Monitoring with Aeroscope
· Extended Detection Range: Utilizes advanced spectrum analysis to scan 2.4GHz, 5.8G, and other drone frequencies within a 10km radius, pinpointing drone-to-controller communication signals.
· AI-Powered Recognition: Automatically identifies drone models (e.g., DJI Mavic, Phantom), flight paths, and operator locations via AI algorithms. Supports SN code parsing and real-time display of flight parameters (speed, altitude).
· Multi-Target Tracking: Simultaneously monitors over 100 aerial targets, with scalable coverage via multi-device networking (up to tens of square kilometers).
2. 3km Fixed Drone Jammer
· Full-Spectrum Suppression: Equipped with 8-channel jamming modules covering 400MHz–6GHz (including 2.4GHz Wi-Fi/Bluetooth, 5.8GHz video transmission, and GPS/GLONASS navigation). Disrupts control links, video feeds, and positioning simultaneously.
· Directional Jamming: Features high-gain omnidirectional antennas for "stealthy" neutralization within a 3km radius, forcing drones to return, hover, or land safely without physical damage.
· Adaptive Strategies: Customizable jamming radius and power output dynamically adjust to threat levels (e.g., FPV racers vs. consumer drones).
Technical Highlights
· Military-Grade Performance:
o Operating temperature: -30°C to +65°C, suitable for extreme environments.
o IP65-rated dust and water resistance for harsh weather conditions.
o Anti-interference design with frequency hopping and signal filtering to protect legitimate RF devices (e.g., mobile networks, Wi-Fi).
· Modular Architecture:
o Separable monitoring and jamming units support remote control, cloud management, and integration with third-party security systems (CCTV, radar).
o Quick deployment: Installed in 30 minutes with fixed mounts, compatible with mains, solar, or battery power.
Applications
· Critical Infrastructure: Airports, nuclear plants, oil depots, and government buildings to prevent espionage or payload delivery.
· Event Security: Concerts, sports games, and political gatherings to block unauthorized drone filming.
· Border & Prison Control: Intercepts drone smuggling and communication to prevent contraband delivery.
Military Training Zones: Simulates real-world scenarios for anti-drone testing.
