Features

Specifications

Detection Frequency: 300MHz-6.2GHz

Weight: 18kg

Dimensions: 510x510x710mm

Detection Range: 10km

Detection Angle: 360°

Max UAV Detection: 150pcs

Lowest Detection Height: ≤0 Meters

Detection Rate: 99.9%

Jamming Frequency: 433Mhz, 800MHz, 900Mhz, 1.5GHz, 2.4GHz, 5.1-5.2GHz, 5.8GHz

Intercept Distance: 2km

Jamming Power Adjustable: 10DBM, 20DBM, 30DBM, 37DBM, 40DBM

Power Supply: 220V±10V

Protection Grade: IP65

Working Temperature: -40℃ ~ +55℃

UAV Identification: 400+ Models

Highlight:

360° drone detection system

fixed drone jammer 10km range

300MHz-6GHz drone detection

Basic Infomation

Payment & Shipping Terms

Gallery

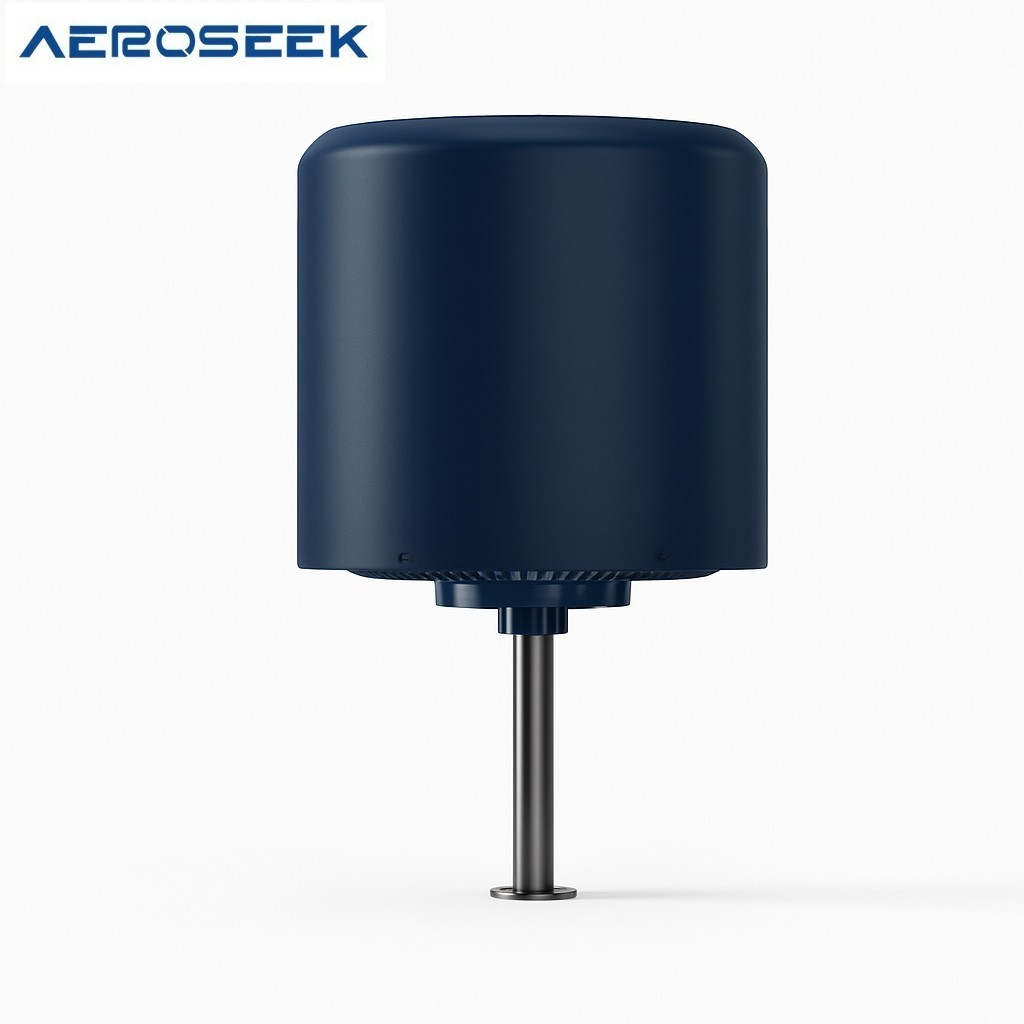

Aeroseek 360° Drone Detection System 300MHz-6GHz 10km Range

Product Description

Full Band 360° Drone Detection System

Advanced UAV defense system covering 300MHz to 6GHz with 10km detection range, designed for critical infrastructure protection and security operations.

Key Specifications

Attribute	Value
FPV Detection	300MHz-6.2GHz
Weight	18kg
Technology	Frequency Band Detection
Transport Package	Durable Case or Box
Specification	510x510x710mm
Trademark	Aeroseek
Origin	Shenzhen, China
Production Capacity	50 PCS/Month

System Capabilities

This portable, easy-to-operate shield device provides advanced UAV defense with multi-frequency strike capabilities, neutralizes threats, and offers detailed reconnaissance and identification functions for comprehensive protection against unauthorized drones.

Technical Specifications

Function	Description
UAV Detection	Spectrum bandwidth: 70MHz - 6GHz Focus frequencies: 433MHz, 868MHz, 915MHz, 2.4GHz, 5.2GHz, 5.8GHz FPV Detection: 300MHz-6.2GHz analog signals Simultaneous UAV screening: 150 units Lowest detection height: ≤0 meters Detection rate: 99.99%
Drones Location	Identifies UAVs with Remote ID (China GB42590-2023, US ASTM F3411-22a, EU ASD-STAN PrEN4709-002) and Drone ID (DJI Mavic2, Mavic3, Air3s, Matrice4, etc.), parsing detailed location information
White and Blacklist	Identifies 400+ UAV models with autonomous learning capability Performs accurate target identification and signal analysis Supports unique ID recognition and black/whitelist differentiation
Defensive Interference	Jamming capabilities at 900MHz, 433MHz, 1.5GHz, 2.4GHz, 5.8GHz, 5.2GHz and other customized bands

Key Features

360° detection coverage with 150 simultaneous UAV detection capacity
99.9% detection rate with ≤0 meter minimum detection height
Broadband jamming: 433MHz, 800MHz, 900MHz, 1.5GHz, 2.4GHz, 5.1-5.2GHz, 5.8GHz
2km effective interception range for straight-line dive and turned flight UAVs
Parrot AR Drone takeover capability
Adjustable jamming power with five settings (0.01W to 10W)
220V±10V power supply with IP65 protection rating
Operational temperature range: -40℃ to +55℃

System Initialization

Our Anti-Drone System features one-click activation for rapid detection, tracking, and neutralization. With API integration capabilities and modular architecture, it's ideal for corporate facilities, government agencies, airports, and seaports.

AeroSeek: Pioneering Anti-Drone Solutions

AeroSeek is a global leader in low-altitude drone security, developing advanced anti-drone systems to protect airspace across industries and regions. Founded by Leo, former Product Manager at DJI, our team has deep expertise in drone security solutions.

We focus on compact, portable detect-and-neutralize solutions that combine cutting-edge detection with effective countermeasures for fast, efficient responses to drone threats.

Frequently Asked Questions

What types of drones can your system detect?

Our detection system can identify a wide range of commercial, consumer, and custom-built drones, including DJI, Autel, Parrot, and FPV drones. It supports detection based on RF signals, GNSS interference, and drone protocol analysis.

Does the device support FPV drones?

Yes. Our advanced signal analysis module supports detection of analog and digital FPV drones by identifying unique transmission characteristics and frequency bands used in real-time video transmission.

Is your drone detection system portable or fixed?

We offer multiple formats: Portable systems (backpack-style or gun-type), vehicle-mounted systems for mobile protection, and fixed installations for critical infrastructure or border security.

Can your system integrate with other security platforms?

Yes. Our platform supports integration via SDK or API with external sensors like PTZ cameras, radars, acoustic sensors, and C2 platforms.
