Product Description
Hobit DT01 portable UAV detection equipment has built-in efficient UAV signal feature classification and recognition algorithm, which can realize the detection of Remote Control image transmission signals of mainstream UAVs in the market, including DJI , Autel, Feimi, Harberson, Black Sheep, LORA, ELRS, DIY crossing aircraft, etc. The equipment has the characteristics of low power consumption, strong expansibility and convenient maintenance.
Specification
| Product Functions |
Parameter |
| Drone Detection |
The detection range can be up to more than 5km, covering common UAV signal modes such as DJI, Daotong, traversing aircraft simulation image transmission, enhanced wifi, Lora, TBS, ELRS, lightbridge, etc. |
| Strong Expansibility |
Various functions can be expanded through the external magnetic interface |
| Strike linkage |
It can link all kinds of jamming equipment (backpack jammer, jamming Gun) and support automatic linkage strike. |
| Spoofing linkage |
It can link spoofing equipment with Specific protocol types. |
| Multi-device networking |
The detection information can be reported to the designated IP in real time to realize real-time networking of multiple devices. |
| Quick Configuration |
Support equipment maintenance by means of mobile phones and computers, including firmware upgrade, jamming strategy configuration, network parameters, detection frequency band configuration, etc. |
| Real-time DF |

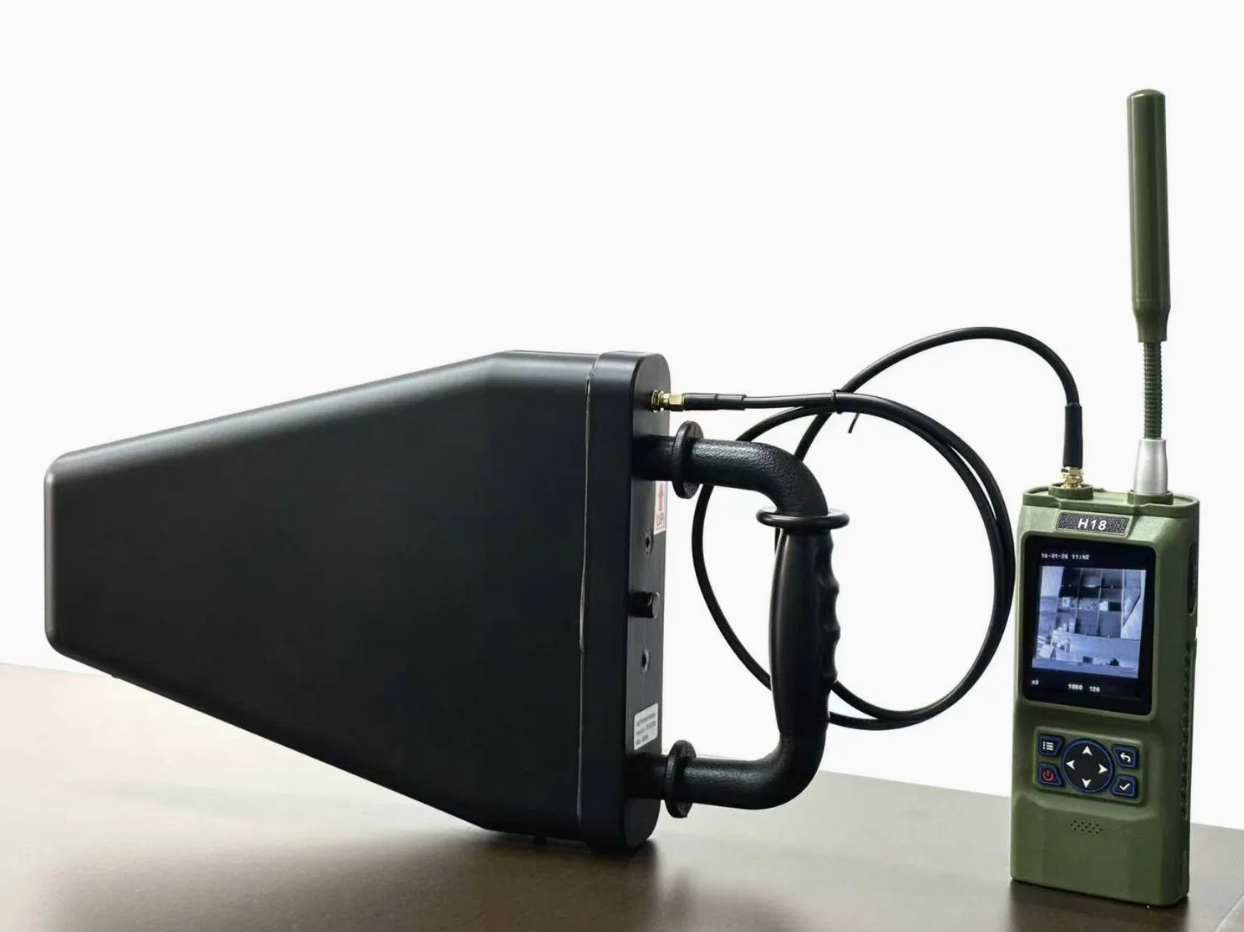

Support external DF array antenna to realize real-time DF of the detected target (no need to manually rotate the antenna, and the DF frequency band depends on the selected DF antenna) |
Technical Specs
1: Receiving frequency band: 70MHz ~ 6000MHz (detection frequency band can be flexibly configured)
2: Signal identification type: DJI, Autel, Harboson, Feimi, Black Sheep, Lora, ELRS, Walksnail, various analog image transmission traversing aircraft, wifi enhanced image transmission UAV, etc.
3: Detection range: ≥ 3 km (related to the surrounding electromagnetic environment, UAV transmission power, etc.)
4: Power supply: removable lithium battery
5: Battery parameters: 31Wh, 12.6 V, support 35w type-c fast charging
6: Endurance: ≥ 6 hours (single battery)
7: Structure size: 159mm × 70 mm × 44mm (the host does not include antenna and back clip)
